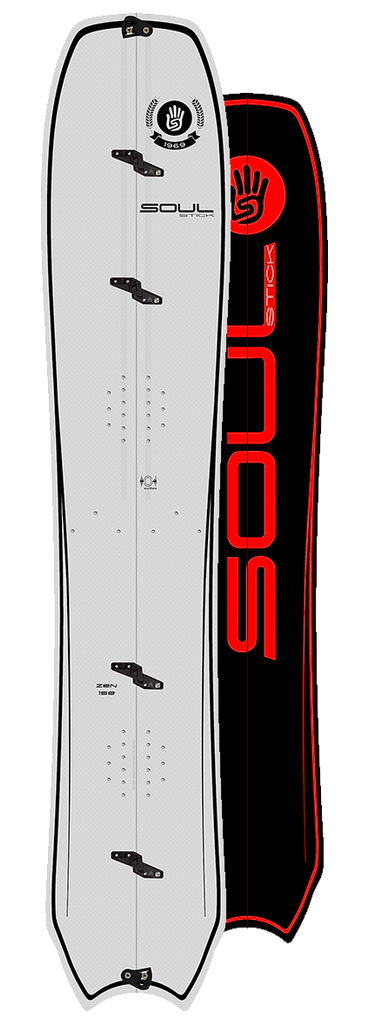

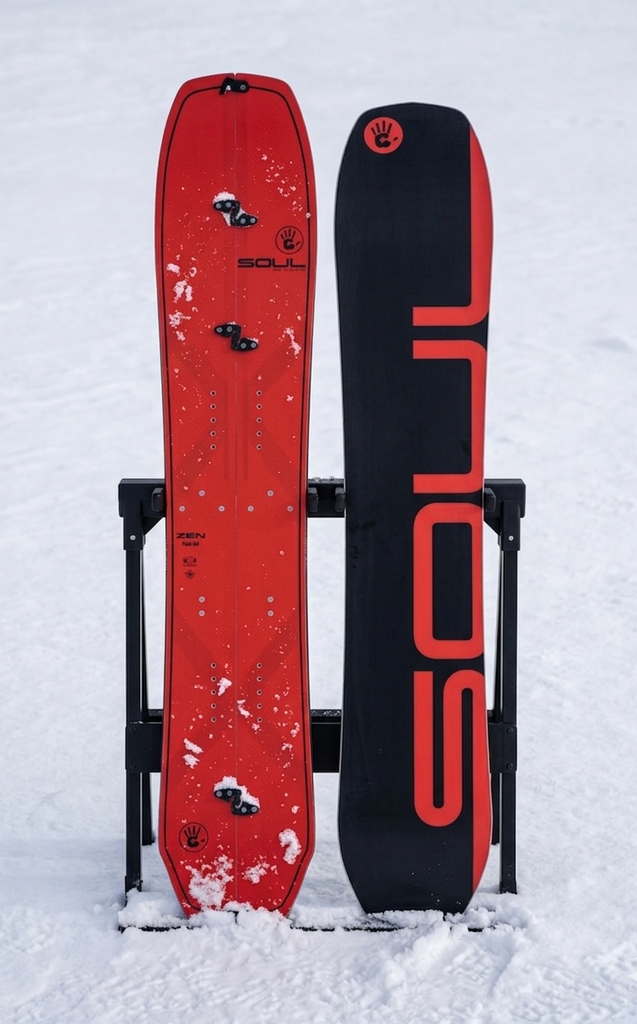

Zen Splitboard 130 | 158 | 164
Backcountry Touring is all the rage, and for good reason. It's really fun to access untouched, conditions. Just you, and a few friends, with the area to yourselves.
At Soul, we wanted to enter the splitboard market with something really unique. Something special to set us apart. And with the Zen, we've done it: we've created a backcountry touring board that feels like a solid board. In fact, we've built it so that regular bindings can be mounted to the 2x4 insert pattern for that familiar feel we love. It's really hard to tell this is a splitboard even on inbounds icy terrain.
The tech is important. The board is light, with great torsional stability despite the split. Camber under foot gives you superior hold hill climbing, and great pop and response while riding, while the early rocker makes for a fluid surfy feel. The top sheet is treated with our unique "Slip" technology, combined with light reflective colours, to reduce snow and ice buildup while climbing and riding.

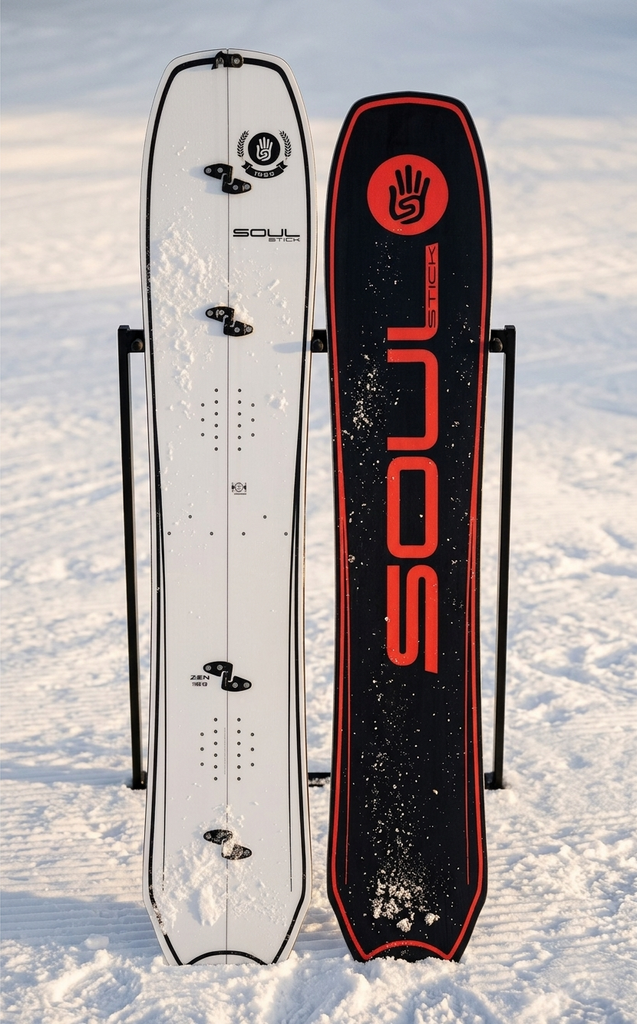

We developed the Zen 130 to work with a binding we have designed, but with the carbon adapter plates that it comes with, any splitboard binding will work. The Zen 158/164 wortk with both standard split hole patterns and 4x4 hole patterns (to use our patented split binding).
Length | 164cm | 158cm | 130cm |
Nose Width | 316mm | 303cm |
258mm |
Waist Width | 274mm | 262mm | 223mm |
Tail Width | 301mm | 288mm | 245mm |
Effective Edge | 1156mm | 1140mm | 920mm |
Nose Length | 334mm | 410mm | 340mm |
Nose Rocker | 67mm | 62mm | 51mm |
Tail length | 160mm | 221mm | 180mm |
Tail Rocker | 31mm | 29mm | 28mm |
Camber | 5mm | 5mm | 4mm |
Stance Width | 460 to 660mm | 420 to 660mm | 340 to 540mm |
Parabolic Sidecut | Parabolic | 10m - 8.1m | 6.1m - 6.9m |
Approximate Weight | 3.4kg | 3.2kg | 2.2kg |
Recommended Stance | R: -5/+10 | F +10/+35 | R: -5/+10 | F +10/+35 | R: -5/+10 | F +10/+35 |
Construction
Core | Elite: Poplar+ Paulownia |
Lamination | Elite: Tri-ax fiberglass w carbon stringers |
Resign | Elite: Epoxy Pre-preg |
Base | Elite: Sintered 7700 |
Damping | Elite: Twin Stringer |
